It employs edge computing algorithms for onboard telematics data processing and analysis. That means, CANUp telematics gateway analyzes raw data before sending it to online telematics platform. Data analysis is carried out using IoT Burger Technology and includes:
- data reading from standard CAN bus of vehicle,
- smart measurement of analog signals,
- standardization of various types of signals,
- detection of quick Events – e.g. oil pressure drop, voltage jump,
- on-board Report generation – regular or Event-based.

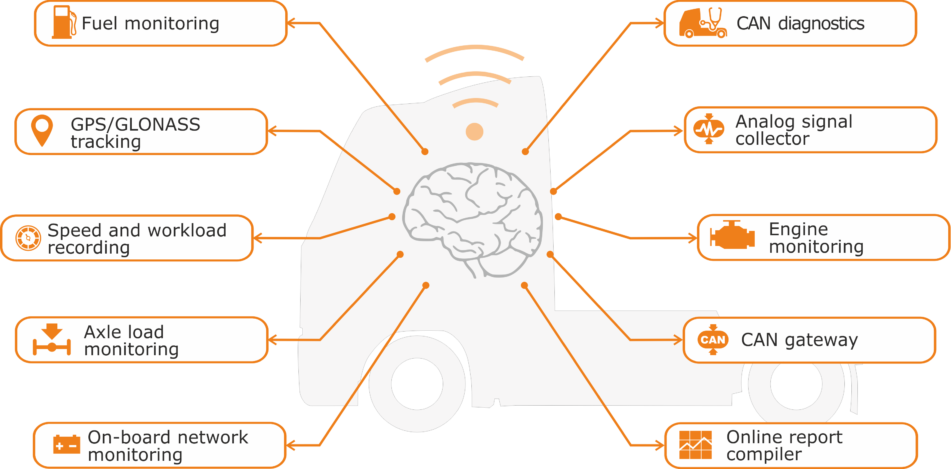

Edge computing telematics gateway provides possibility of composing Reports of over 3800+ vehicle operation parameters. CANUp receives data from various additional monitoring devices – fuel level sensors, fuel flow meters, FMS readers, axle load sensors, etc. The gateway is used as a terminal unit in vehicle tracking systems and stationary object monitoring systems – construction and agriculture vehicles, railroad machines, water crafts, diesel generator stations.
Advantages of Edge computing telematics gateway
- Automated scanning and parsing of CAN J1939 bus messages
- measurement of analog and digital signals with 0.1 second resolution
- filtering and linearization of analog signals,
- conversion of analog signals to J1939 format
- flexible generation of Reports – selection from 3800+ operation parameters
- Data reading from network of fuel sensors and other peripherals over S6 Technology
- Bluetooth Low Energy using S7 Technology
- gateway self-diagnostics feature
- sending Reports and Events to telematics server over 2G/3G
- ability to work without online severs – data sending directly to user via SMS and e-mail
