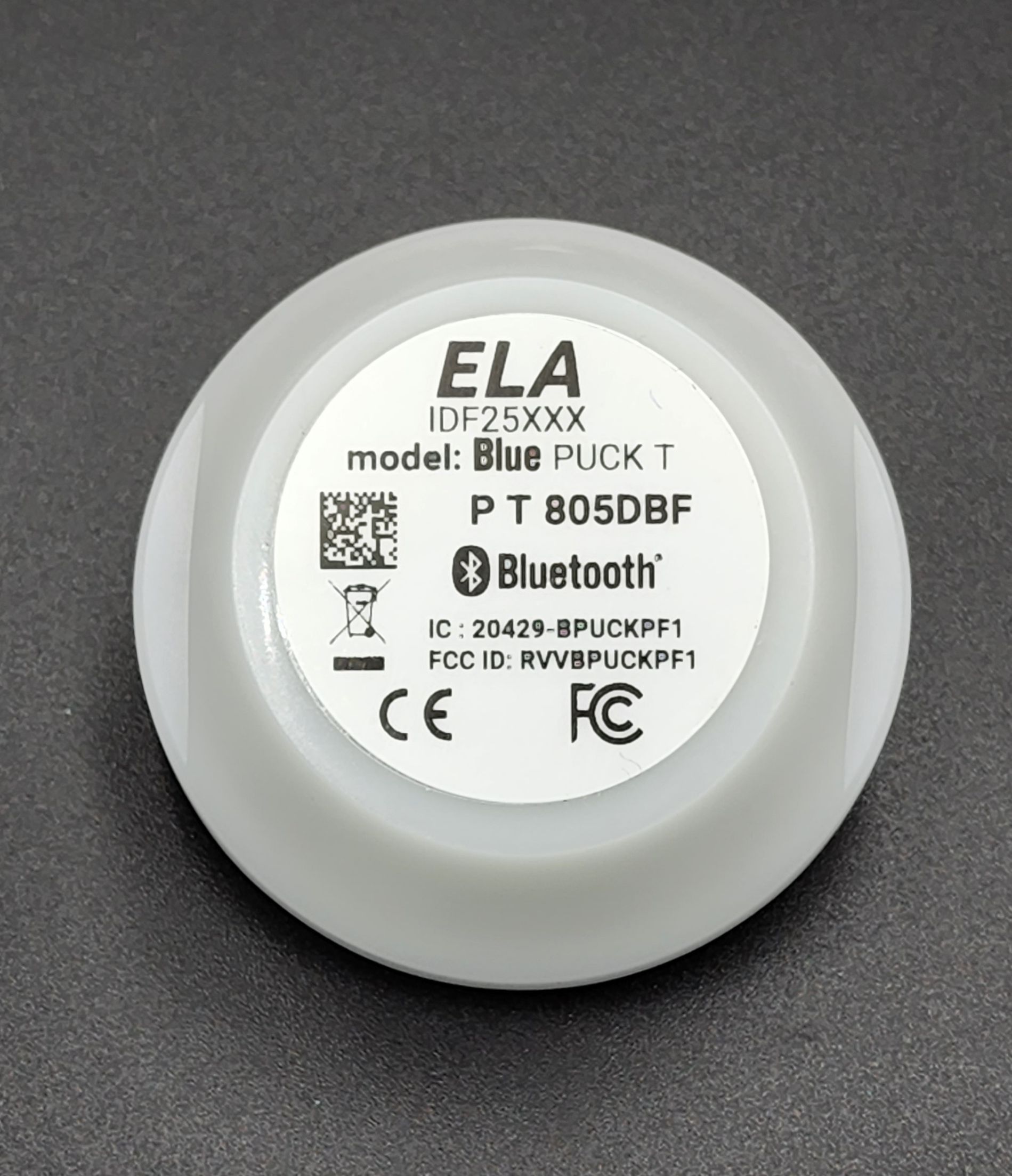

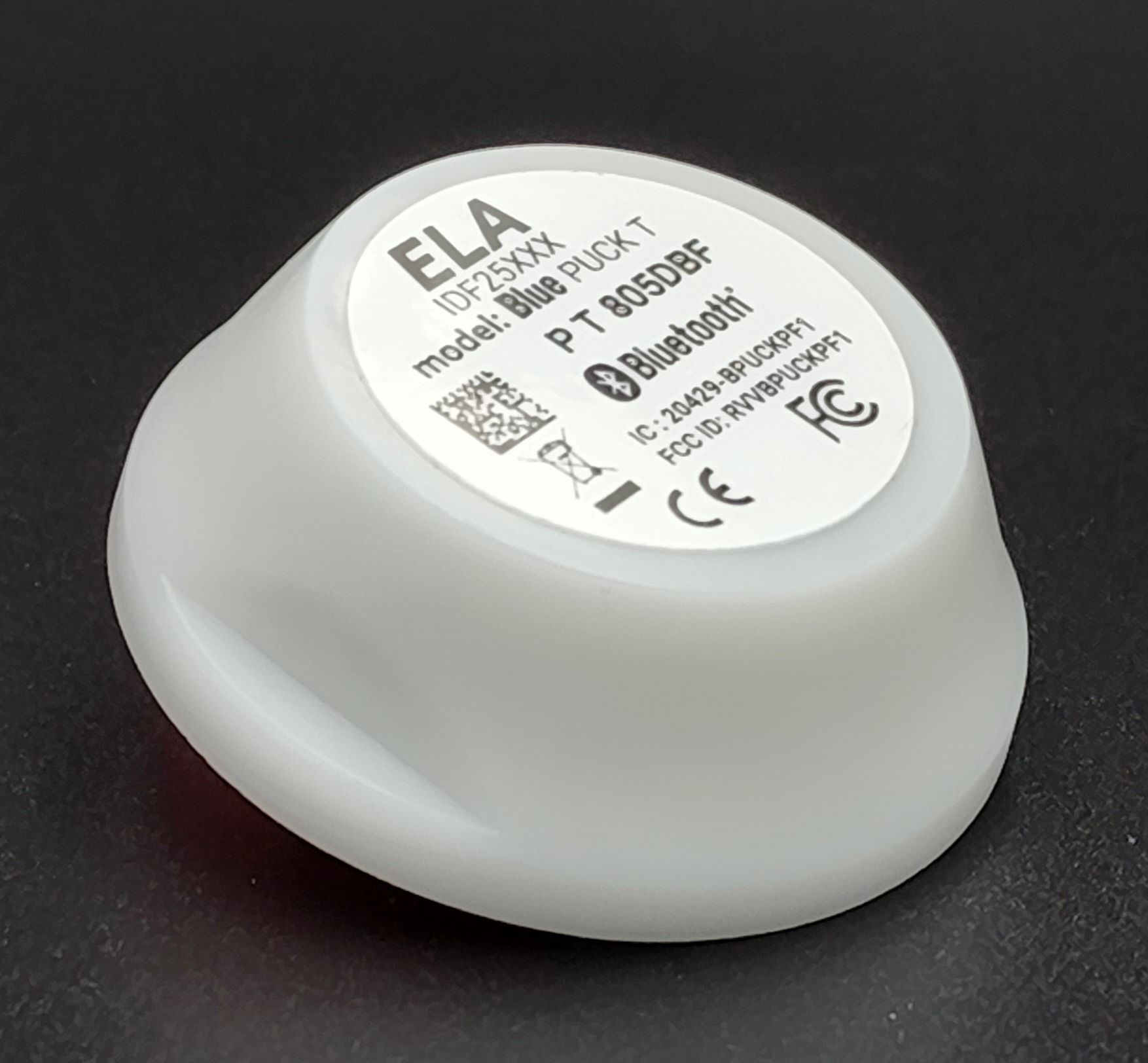

BLUE PUCK T

BENEFITS
• Integrated Temperature sensor
• Very high autonomy : up to 20 years
• High transmission range
• Waterproof (IP68)
• Smart & secure programming by NFC
• Over The Air Programming (OTAP

OPERATING MODE
Frequency                                       2,4 GHz – Bluetooth Low Energy 4.0/4.2
Output power                                Up to +4 dBm (configurable)
Range                                                Up to 500 meters open field (+4dBm)
Transmission period                  Advertising period (0,1 sec to 10 sec – configurable in seconds)
Radio frame format                    Identifier : 15 characters max (15 bytes)*
Temperature : (in 0.01°C) (2 Bytes)*
*Refer to the frames specifications for more information
Settings and configuration        Interface/protocol: NFC (Type 2)
Connected mode                             Datalogger transmission (record of saved sensor measures)
Battery level command
Advertising mode                         Periodic temperature data transmission
Sensors performance                 Range: -40 to 85 °C
                                                            Resolution: 0,0625 °C
Accuracy:
±0.5°C maximum (0°C to 65 °C);
±1°C maximum (-40°C to 0°C & 65°C to 85°C)
Calibration: Configurable 3-point calibration coefficients
(Polynomial 2nd degree)

BATTERY                                  Power supply 3 VDC – Internal lithium battery
Battery life                                 Up to 20 years*
* Refer to the battery life curves for more information
Battery level                              Low battery warning in advertising frames (<15%)
Battery voltage in scan response frames (configurable)

CERTIFICATIONS
Europe                                        CE : EN 300 328/ EN 301 489 & EN 55032 / EN 62368-1
USA                                             FCC : FCC PART 15
Canada                                       ISED : RSS-247 / ICES-003
RoHs                                           Yes

HOUSING
Dimensions                           Ø 57 mm base – Height 20 mm
Weight                                   41g
Materials                               DELRIN (POM C) Compatible with food products
(90/128/EEC)
Waterproof grade                IP 68
Operating temperature      -40°C to +85°C

ACCESSORIES
Tag support                         PUCK HOLDER STICKER (ACIOM118B)
PUCK HOLDER (ACIOM117B)
PUCK STICKER (ACIOM188)
3M PT1100 – Ø 53mm – height : 1,1mm
